On a touring bike, or any bike I plan on racking up long hours in the saddle, a back rest keeps me comfortable and makes long days riding so much easier.

My 72 Eldorado has been fitted with a single seat and I had a spare rack kicking around that hung off the back of a dual seat.

Some cutting of the old rack, new brackets and the rack now sits behind the solo seat.

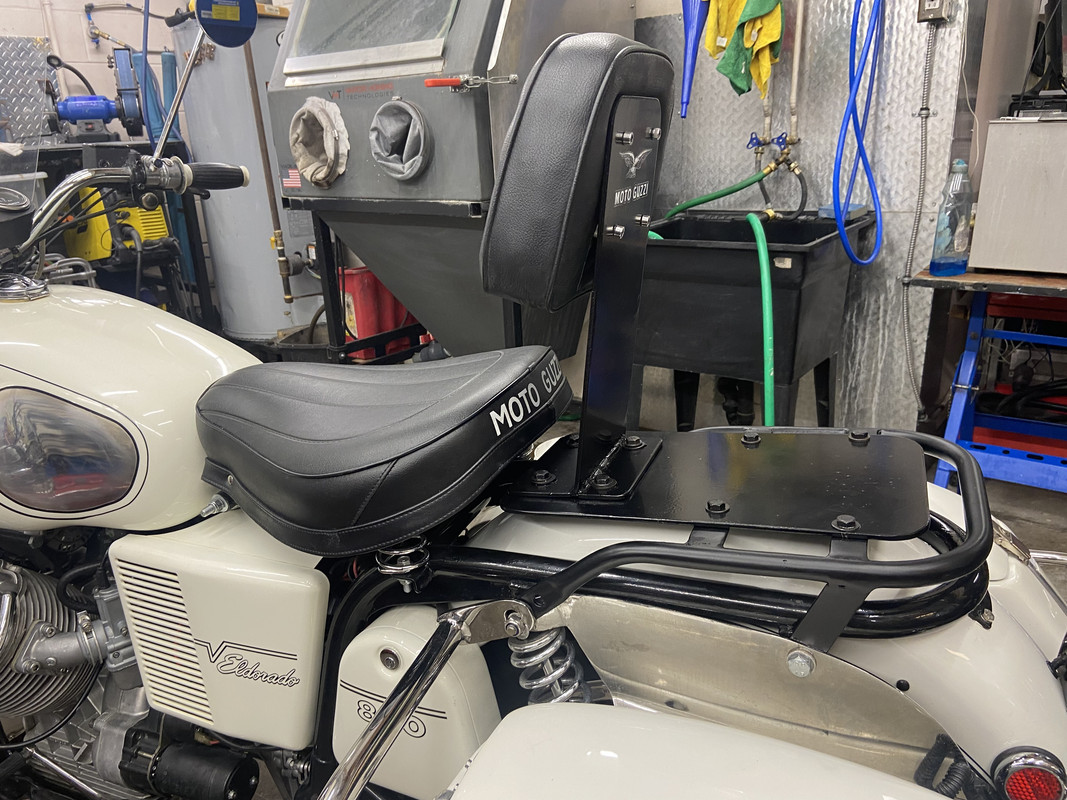

I then cut 3/16" steel plate for a flat surface across the rack top and welded some nuts to the underside for a removable back rest support.



I had a piece of 1/4" thick aluminum bonded to soft foam and a vinyl cover sewn up at a local upholstery shop. Captive nuts are rivited into the aluminum plate to take M6 x 1 stainless cap screws.



The back rest support is also 3/16" steel and bolts through slotted holes to the steelplate. I can adjust the lcoation of the back rest by 1" for and aft.



I shimmed the padded rest lower bolts to get the angle I wanted beyond the bent steel vertical plate. I powder coated the parts in my shop oven.

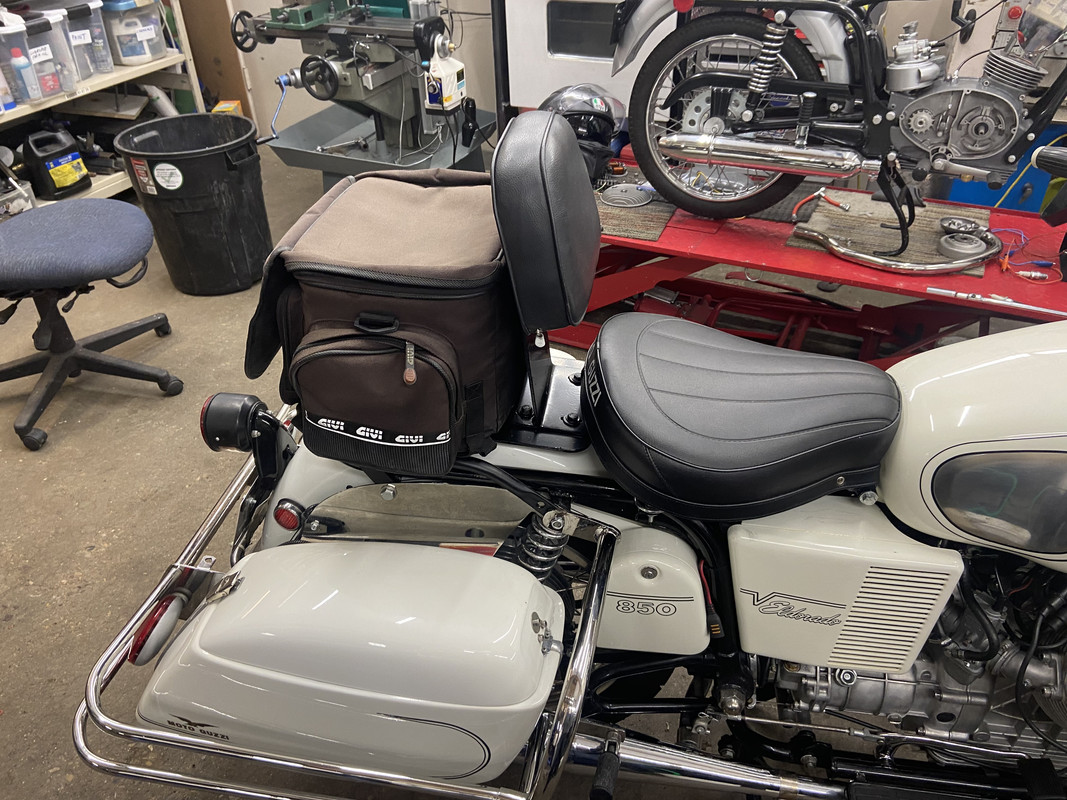

My old Givi tail bag clips to the rack, ready to head to Alaska and Yukon at the end of July, my buddy is joining me on his 75 Goldwing GL1000. Two old guys on old bikes!



The depth of the foam and the slight spring in the steel plate makes for a nice cushy feel across my back, a Lazy Boy for the road.
