Question for CX100/ 1000 SP owners.

[ritratto]

I am in the middle of building a custom bike and bought a pair of foot peg brackets off of fleabay and after getting it all set up, I realized that someone had shortened them.
So my question is, what is the total length of the bracket? End to end?
The front (rider peg) is where it was cut and rewelded.So I will cut, extend and reweld to the correct length, making the shift/brake pedals work correctly. Or if anyone has the uncut originals they might be willing to part with, even better.
Thanks in advance for any replays.

Ted

[Guzzistajohn]

I am in the middle of building a custom bike and bought a pair of foot peg brackets off of fleabay and after getting it all set up, I realized that someone had shortened them.
So my question is, what is the total length of the bracket? End to end?
The front (rider peg) is where it was cut and rewelded.So I will cut, extend and reweld to the correct length, making the shift/brake pedals work correctly. Or if anyone has the uncut originals they might be willing to part with, even better.
Thanks in advance for any replays.

Ted

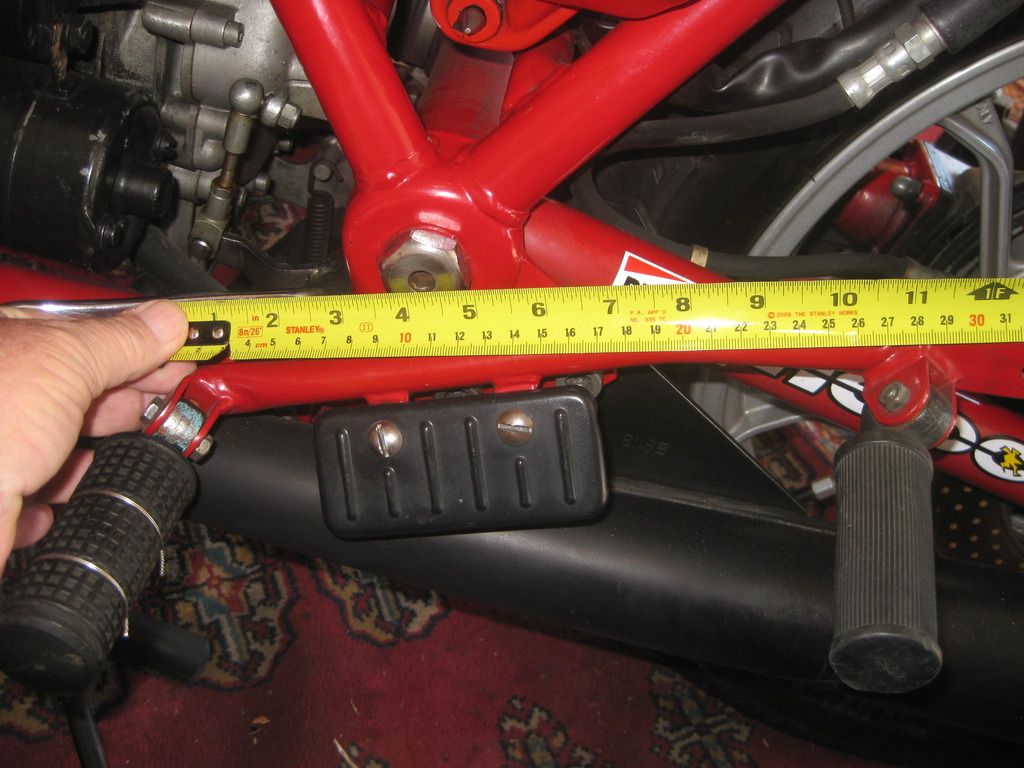

Don't have any to sell, but this might help

[ritratto]

So, John, what is the total then?

[Arizona Wayne]

The total bracket length end to end is 13.5"

[ritratto]

Wow! Two inches were cut out!

[Arizona Wayne]

Wow! Two inches were cut out!

The back pegs are for the passenger, but I use them on straights for more leg room(30") too when solo riding.

[ritratto]

 Thanks Wayne and John.... I took them to a friends shop with a piece of 3/8" pipe ( 17mm compared with 18mm on the bracket)  and a couple hours later, Bingo, back to stock!

Loving the forum again!

[Guzzistajohn]

Sorry stepped out glad you could chime in uncle wayne
