Norge Weird random starting issue

[i HONK]

Apparently an open circuit at the switch where the wiring harness enters the housing. Looks like removing the switch is the next step. I'll be busy for a while. Any advice from y'all would be appreciated.

Randy

2007 Norge has been basicly trouble free for 87,000+ miles. But yesterday the bike wouldn't start. No parking lights, until I rotate the handle bar to the far left stop. Bike starts all is good until I move the steering to center position. Bike keeps running but headlights turn off. No re-start in the center position.  Apparently a wiring issue.............. .....Before pulling stuff apart, looking for possible ideas.

Randy

[pete roper]

Does the dash light up? If so clutch switch. If not? Ignition switch.

Pete

[Kiwi_Roy]

If the wires are flexing where they go into the ignition switch chances are one of them is broken.
I'm not sure about the Norge but earlier Guzzis it was just a matter of unscrewing the switch block, 2 Phillips screws around the back to get the block off.
Re-solder the wire on and fix them to the housing so the movement is taken up by a gentle twisting over several inches away from the soldered joint. At a solder connection is the first place a wire will break.


Disclaimer - as I said this is not a Norge switch, it's off a VII

[atavar]

Oh geeze, great, another flakey Norge problem. If I get this one too I'm blaming you!!!

[Edo]

This is timely. From time to time I get a no start, that is, a single clunk and then nothing. Second or third try is always successful. But one of these days, ..........

[Kiwi_Roy]

This is timely. From time to time I get a no start, that is, a single clunk and then nothing. Second or third try is always successful. But one of these days, ..........

Dirty Ignition switch most likely

[i HONK]

Apparently the ignition switch has a broken internal wire, on to the next step....micro-surgery and with big hands a major challenge.......... .....

Randy

[i HONK]

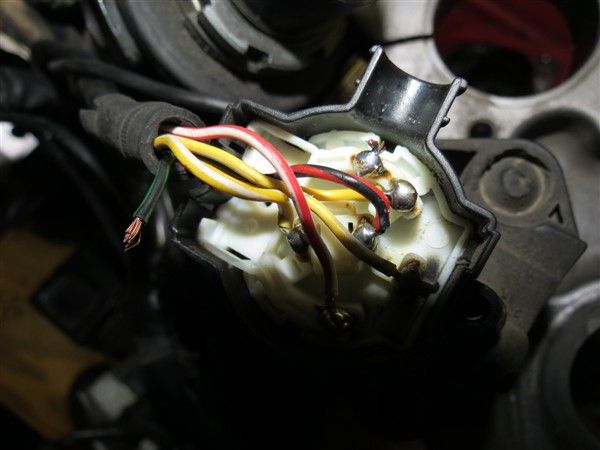

The wiring is very close to the photo from Kiwi Roy, I'll photo the Norge failure for the site.

Randy




I added a short pig tail to the broken wire and re-installed the cover & zip tied the harness to complete the assembly. a test to confirm and I'M back on the road and heading to the Minnesota Rally later this month......
Randy

[i HONK]

A big thanks to Kiwi_Roy   Just putting details back together, all is good and should be back on the road tonight.
Randy

[Kiwi_Roy]

That's great, as I said before make sure the wires are fastened where they come out of the switch cover so there's no bending going on at the solder joint.
Just a gentle twisting over several inches. The first place a wire will break is at the soldered joint, the copper work hardens and gets brittle.

[Chuck in Indiana]

I saw the same thing on a friend's V11S. Must be a common issue..

[i HONK]

The wiring is very close to the photo from Kiwi Roy, I'll photo the Norge failure for the site.

Randy




I added a short pig tail to the broken wire and re-installed the cover & zip tied the harness to complete the assembly. a test to confirm and I'M back on the road and heading to the Minnesota Rally later this month......
Randy

Re Post for update
