Author Topic: 850T Throttle cable routing  (Read 6303 times)

Offline swooshdave

  • Gaggle Hero
  • *****
  • Posts: 1303
  • Location: Portland, Oregon
850T Throttle cable routing
« on: September 02, 2016, 05:11:32 PM »

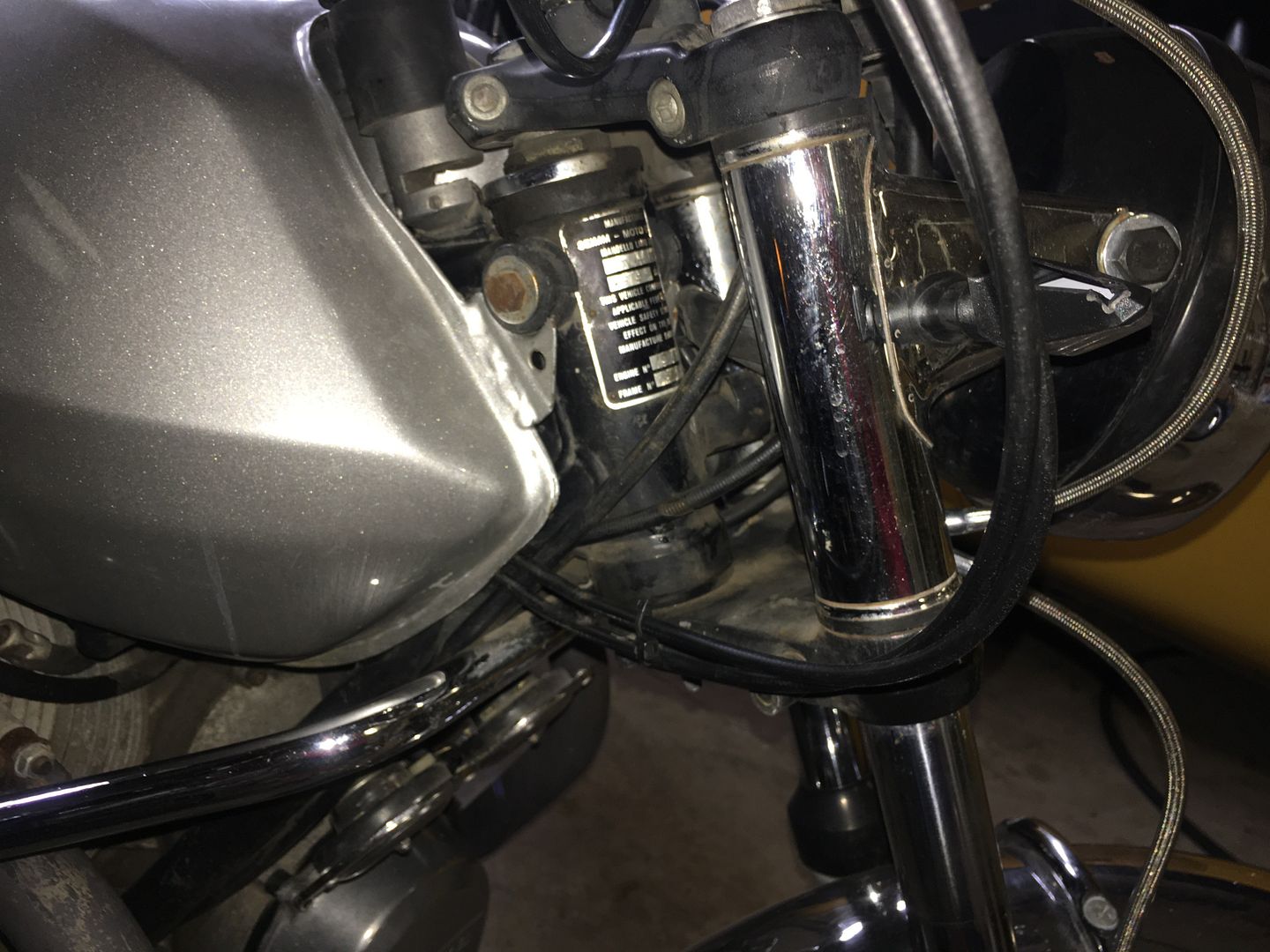

Can someone confirm the correct throttle cable routing? When I go full right it drops the idle and full left it speeds up. Which tells me it's probably binding somewhere.

At the carb end they come out between the tank and top frame rail.
--
2001 V11 Sport
1972 Norton Production Racer Replica
1973 Norton Commando Interstate

Online acogoff

  • Gaggle Hero
  • *****
  • *
  • *
  • *
  • *
  • *
  • Posts: 1228
Re: 850T Throttle cable routing
« Reply #1 on: September 02, 2016, 08:41:27 PM »
     The only thing I can see is the the cables appear twisted one turn around each other up at the throttle end. Easy enough to correct and see if that helps.
'77850t3FB Owned since it was new
Marshall County Minnesota USA

Offline swooshdave

  • Gaggle Hero
  • *****
  • Posts: 1303
  • Location: Portland, Oregon
Re: 850T Throttle cable routing
« Reply #2 on: September 02, 2016, 09:16:27 PM »
     The only thing I can see is the the cables appear twisted one turn around each other up at the throttle end. Easy enough to correct and see if that helps.

Is the location correct?
--
2001 V11 Sport
1972 Norton Production Racer Replica
1973 Norton Commando Interstate

Offline Guzzistajohn

  • Gaggle Hero
  • *****
  • *
  • *
  • Posts: 12567
  • Location: Missouri Ozarks
Re: 850T Throttle cable routing
« Reply #3 on: September 02, 2016, 09:48:11 PM »
There's not really a "correct" location, just put them in a place where they don't bind. Pinched between the tank and the frame, no bueno
ебать Россию!   Not anti social-pro solitude

Offline Tom

  • Gaggle Hero
  • *****
  • *
  • Posts: 28777
Re: 850T Throttle cable routing
« Reply #4 on: September 02, 2016, 09:50:00 PM »
Take the tank off and check the cables that way.
From the Deep Deep South out in left field.  There are no stupid questions.  There are however stupid people asking questions.  🤣, this includes me.  😉 Hawaii.

canuck750

  • Guest
Re: 850T Throttle cable routing
« Reply #5 on: September 02, 2016, 11:33:19 PM »
These are pictures of a typical tonti frame (750 S3) throttle cable routing, original installation prior to restoration. Note hoe the throttle cables are routed along and over the frame rail to the carbs. Your 850T should be very similar.



Cables from the throttle and through the triple clamp







I matched the cable installation after the restoration and have not experienced any issues.

Offline bobdar

  • Gosling
  • ***
  • Posts: 212
Re: 850T Throttle cable routing
« Reply #6 on: September 03, 2016, 12:20:22 AM »
If your idle is decreasing when turning, you should add some free play at the carb connections; the slide should be limited by the idle screw, not the cable.  I took these pictures while canuck750 was posting, but similar.




bob darcey
lakewood, colorado
'75 850T
'56 Matchless G80

Offline bobdar

  • Gosling
  • ***
  • Posts: 212
Re: 850T Throttle cable routing
« Reply #7 on: September 03, 2016, 12:29:43 AM »




bob darcey
lakewood, colorado
'75 850T
'56 Matchless G80

Offline Groover

  • Gaggle Hero
  • *****
  • Posts: 2918
  • If it ain't broke, I'll break it.
    • Scooteropolis
  • Location: Columbus, Ohio
Re: 850T Throttle cable routing
« Reply #8 on: September 03, 2016, 09:40:14 AM »
Take the tank off and check the cables that way.

This. There may be other things in the way that you may need to work around. Main harness for example. Each bike that has been worked on over the years will hand slight variations on how things are routed and overlapping.
1981 Moto Guzzi V1000G5
1987 Moto Guzzi LM1000SE, a
1987 Moto Guzzi LM1000SE, b
1980 Piaggio Vespa P200E
1980 Piaggio Vespa P125X
1980 Vespa Grande Moped
1980 Vespa SI Moped
http://scooteropolis.com/

Offline Groover

  • Gaggle Hero
  • *****
  • Posts: 2918
  • If it ain't broke, I'll break it.
    • Scooteropolis
  • Location: Columbus, Ohio
Re: 850T Throttle cable routing
« Reply #9 on: September 03, 2016, 10:43:25 AM »
Just checked mine real quick, and I found the route to be best on the other side in my case. I have stock coils and remember having to dodge around those a bit too.



« Last Edit: September 03, 2016, 10:44:11 AM by Groover »
1981 Moto Guzzi V1000G5
1987 Moto Guzzi LM1000SE, a
1987 Moto Guzzi LM1000SE, b
1980 Piaggio Vespa P200E
1980 Piaggio Vespa P125X
1980 Vespa Grande Moped
1980 Vespa SI Moped
http://scooteropolis.com/

Offline v7john

  • Gosling
  • ***
  • Posts: 237
    • The Racing Rhino
  • Location: West Wales, UK.
Re: 850T Throttle cable routing
« Reply #10 on: September 03, 2016, 02:35:24 PM »
The original cable routing was as canuck750 shows. Both cables down between the tank and frame on the right hand side. I was shown many years ago what for me was a better way. I route one cable down each side then cross them over the top of the top frame tube.


I tie the cable to the frame here on each side. This is the right side (throttle and speedo cable)
1972 V7Sport. Owned by me since 1978.
1972 V7 700cc ex Vigili del Fuoco?
1954 BSA M33 500cc.
1952(?) SuperAlce. Currently testing my patience.

Read my blog at www.racingrhino.wor dpress.com

Britcheflee

  • Guest
Re: 850T Throttle cable routing
« Reply #11 on: September 03, 2016, 02:37:54 PM »
I wonder if the stiff throttle on mine is caused by incorrect routing as well - hand starts aching after just a short time on the road.

Offline Testarossa

  • Gaggle Hero
  • *****
  • *
  • *
  • *
  • *
  • Posts: 3316
    • Skiing History
  • Location: Paonia, Colorado
Re: 850T Throttle cable routing
« Reply #12 on: September 03, 2016, 02:50:32 PM »
Quote
I route one cable down each side then cross them over the top of the top frame tube.
   :1:
70 Triumph TR6R, 74 850T, 74 Yamaha TA125, 89 Mille GT, 99 F650, 2013 Yamaha XT250; 1974 MGB
Gone: 59 Piper Comanche 250, 69 Harley/Aermacchi 350SS, 71 Honda CB500/4, 74 Laverda 750 SF2, 91 Suzuki VX800, 50cc two-stroke scoot, 83 XR350R

Offline v7john

  • Gosling
  • ***
  • Posts: 237
    • The Racing Rhino
  • Location: West Wales, UK.
Re: 850T Throttle cable routing
« Reply #13 on: September 03, 2016, 02:55:45 PM »
Britcheflee.
I have to be careful as I have a damaged hand and wrist. The return springs in the carbs are a little heavy but the cables should move freely. I find that it's not opening the throttle which makes my hand ache but holding it open. This is one reason why I use the throttle damper screw under the twist-grip (Tommaselli 2C) to prevent the throttle closing. The other reason is so I can make hand signals as I don't have indicators fitted.
« Last Edit: September 03, 2016, 02:56:36 PM by v7john »
1972 V7Sport. Owned by me since 1978.
1972 V7 700cc ex Vigili del Fuoco?
1954 BSA M33 500cc.
1952(?) SuperAlce. Currently testing my patience.

Read my blog at www.racingrhino.wor dpress.com

Britcheflee

  • Guest
Re: 850T Throttle cable routing
« Reply #14 on: September 03, 2016, 03:32:08 PM »
Hmmm I need to adjust that a bit see if it helps - I have the same problem - holding it in place for a while and my hand/wrist hurts....

Offline Tom

  • Gaggle Hero
  • *****
  • *
  • Posts: 28777
Re: 850T Throttle cable routing
« Reply #15 on: September 03, 2016, 03:40:42 PM »
Make sure you lube the cables, ends and slides.
From the Deep Deep South out in left field.  There are no stupid questions.  There are however stupid people asking questions.  🤣, this includes me.  😉 Hawaii.
